Data Ingestion and Storage

Section 2 of AWS Certified ML Engineer course from Udemy.

Categories
AWS
Tags
#Machine Learning#Data Ingestion#Data Engineering#Cloud#AWS

Introduction#

The first step of any machine learning project involves Data. Large amounts of data must be stored in a scalable and secure fashion. This section of the course covers basic data properties, ETL pipeline orchestration, and data storage methods on AWS.

Basics of Data Engineering#

Data Types and Properties#

There are three primary types of data:

We describe data in terms of the Three V’s:

Data Warehouses, Lakes, and Lakehouses#

There are many different (and at first, confusingly similar) terms for data storage solutions.

ETL Pipelines and Orchestration#

An Extract-Transform-Load (ETL) pipeline is used to move data from source systems into a data warehouse. ETL can be performed in batches or via real-time streaming, depending on the velocity and use cases surrounding the data.

Pipeline Orchestration is a method for automating ETL / ELT pipeline execution. AWS offers a number of services for orchestration, including…

Data Sources and Formats#

Data source refers to the medium in which data is received. There are many different types of data sources:

In contrast, data format refers to the particular organization of stored data. Common data formats include:

Amazon S3#

Amazon S3 is an infinitely-scaling storage solution offered by AWS. It has many different use cases, including backup & storage, disaster recovery, archival, hybrid cloud storage, application & media hosting, and so on.

Objects and Buckets#

S3 enables users to store objects (files) in buckets (directories). Buckets are defined at the region level, and are named according to an account regional namespace. Each object has a key, which is defined by the full path of the object including any subdirectories and excluding the bucket name.

s3://my-bucket/my_folder/another_folder/my_file.txt

Although the URL and UI indicates subdirectory structure, buckets do not actually contain nested directories. Instead, the full key is utilized as the object’s path, and AWS creates an abstraction layer to provide the user with subdirectory functionality.

The maximum allowable size for an object is 50TB.

Security#

S3 access is regulated via a number of security policies:

Bucket Policies are the most common approach for access regulation in S3. Any particular bucket policy is JSON containing information on bucket objects, access permission, and applicable accounts.

{
  "Version": "2020-01-01",
  "Statement": [
    {
      "Sid": "PublicRead",
      "Effect": "Allow",
      "Principal": "*",
      "Action": [
        "s3:GetObject"
      ],
      "Resource": [
        "arn:aws:s3:::examplebucket/*"
      ]
    }
  ]
}

How can we enable public access for a bucket?

  1. Disable “Block Public Access” options under bucket permissions.
  2. Create new bucket policy allowing any user to retrieve the object.

Versioning#

In the context of S3, Versioning refers to the process of incrementally updating an object while keeping historical records of previous iterations. Versioning is enabled at the bucket level.

Replication#

Replication copies the contents of one bucket into another. There are two primary types of replication:

Buckets may be owned by different AWS Accounts, and copying is asynchronous. Bucket replication chaining is NOT possible. Furthermore, replication only works if versioning is enabled.

Storage Classes#

S3 Storage Class refers to the type of storage guarantee assigned to a particular object. Storage classes primarily differ in terms of:

The main S3 storage classes include:

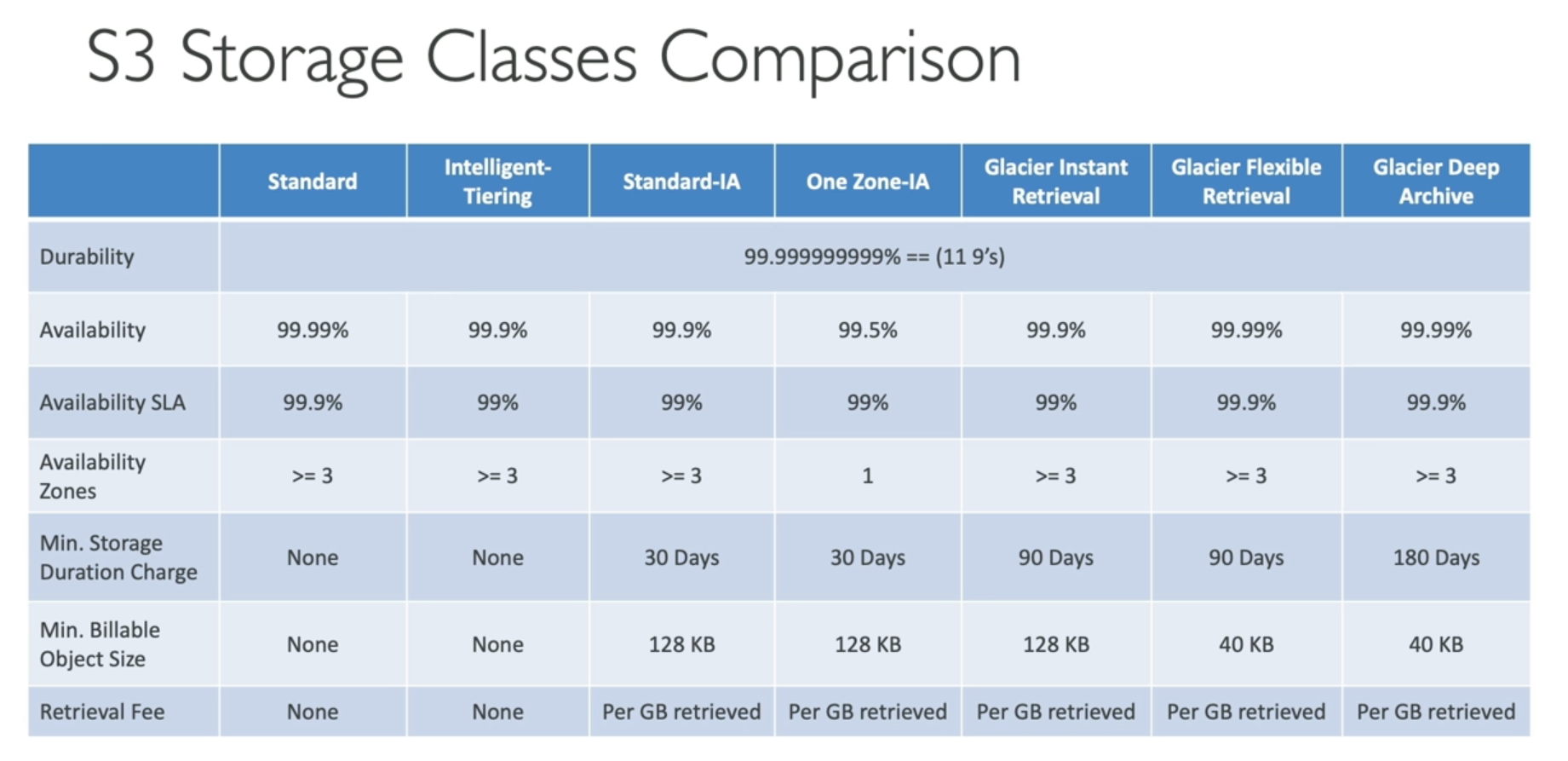

S3 Storage Classes

Lifecycle Rules are used to automate storage class transition depending on the age of an object. For example, we may create a bucket-wide policy which transitions objects from Standard to Standard-IA storage class after 30 days. In addition to storage class transition, lifecycle rules can be used to configure objects to expire (delete) after some time.

Event Notifications#

An S3 Event refers to some action involving an object such as creation, removal, or replication. S3 supports event notifications to automatically notify a downstream service. Event notifications require IAM permissions to allow the S3 bucket to access the proper resources for notification.

Event notification targets on AWS include SNS, SQS, and Lambda Function. All events eventually land in Amazon EventBridge, which supports delivery to many other AWS services.

Performance#

By default, Amazon S3 provides highly scalable performance:

(in this context, prefix refers to the full subdirectory path within a bucket).

S3 uses a number of performance mechanisms, including:

Encryption#

Amazon S3 uses four primary methods for object encryption:

Encryption in Transit refers to the encryption process used in internet data transfer mechanisms, such as Secure Sockets Layer (SSL) and Transport Layer Security (TLS). Amazon exposes HTTP and HTTPS endpoints, but HTTPS is highly recommended over the former.

The default encryption method is SSE-S3. Users may force encryption using a bucket policy to refuse any API call to PUT an S3 object without encryption headers.

Access Points and Object Lambda#

An S3 Access Point refers to provisioned access to a subdirectory within an overarching bucket. For example, if a bucket contains may types of data utilized by many groups of users, we may subdivide the bucket into access points to ensure only the proper teams have R/W access to their corresponding subdirectory prefix. Access Point Policies specify access permissions through IAM roles.

S3 Object Lambda provides automated object manipulation prior to user retrieval. It functions by connecting an S3 Object Lambda Access Point and Lambda Function to an existing S3 Access Point, meaning the object will be sent through the lambda function for any user associated with the access point. This is particularly useful for redacting or enriching data while still maintaining the original object and a single S3 storage bucket.

EC2 Instance Storage#

Amazon Elastic Compute Cloud (EC2) is an auto-scaling cloud computing service offered by AWS. Whereas S3 is the primary storage service offered by AWS, EC2 provides processing power and compute required to run applications. An EC2 Instance is a specific virtual server provisioned via AWS EC2, typically classified according to pre-built configuration.

EBS Volumes#

Although EC2 is primarily for compute, it does offer storage solutions. An Elastic Block Store (EBS) Volume is a network drive attached to a running instance, providing a persistent storage solution regardless of individual EC2 instance status (ex: terminated).

There are a few key restrictions regarding EBS volumes:

The course instructors describe an EBS volume as a “USB stick” for EC2 instances. EBS volumes are elastic, enabling the user to change volume properties without detaching the existing volume or restarting the instance.

Amazon EFS#

The Elastic File System (EFS) is a managed network file system (NFS) mountable on EC2 instances. It scales automatically and is pay-per-use, meaning the user does not need to plan for capacity during initial setup. EFS is only compatible with Linux Amazon Machine Images (AMIs).

An EFS instance supports thousands of concurrent NFS clients and can grow to extremely large size. Various options may be set to match EFS to a user’s particular needs:

EFS are also tiered in terms of storage, including EFS Standard for frequent access and EFS Archive for rare access. The primary distinction between EFS and EBS is that EFS supports many concurrent clients across different availability zones; this corresponds to a higher price point.

Amazon FSx#

FSx enables users to use third party file systems on AWS as a fully-managed service. This is similar to Amazon Relational Database Service (RDS), which allows users the choice of relational database engine in a plug-and-play fashion. Common file systems used with Amazon FSx include Lustre, Windows File Server, NetApp ONTAP, and OpenZFS.

A few additional points on each file system type:

FSx file system deployment may be further configured depending on use case. The scratch file system uses temporary storage and does not replicated data. Persistent file systems offer long-term storage with data replicated within the same AZ.

Kinesis collects and stores streaming data in real time by linking real-time data producers to consuming applications / services. Use cases typically involve a large amount of small real-time data. Kinesis Producer Library (KPL) and Kinesis Client Library (KCL) are used to develop producer and client applications, respectively.

Data Firehose is a service used to send streaming data from producers to destinations.

This is a “near real-time” service with buffering based on size / time. Whereas Kinesis is real-time service where the user develops producer and consumer code, Firehose is a fully-managed service which loads streaming data via a buffering mechanism.

How do we query streaming data? Amazon provides a Managed Service for Apache Flink, which is a framework for processing data streams. This tool enables users to query and analyze data streams (DataStream API for analytics, Table API for SQL access). Common use cases include streaming ETL and continuous metric generation.

Amazon MSK#

Amazon Managed Streaming for Apache Kafka (MSK) is an alternative to Kinesis which enables the creation, management, and deletion of Kafka clusters. Apache Kafka is an open-source event streaming platform used to collect, store, process, and analyze mass amounts of data feeds. The user can create custom Kafka configurations, such as increasing streaming message size (ex: default of 1MB to 10MB).

Any Kafka cluster is comprised of Broker Nodes, which field data from producers and send it to consumers. Configuration parameters include amount of availability zones, broker instance type, and size of EBS volumes used to store data.

Security is a very important component of MSK. By default, MSK uses in-flight encryption (TLS) when communicating data between broker nodes and to consumers. At-rest data is encrypted on EBS volumes using KMS. Authentication and authorization defines which users can R/W to topics (collections of brokers) within a cluster. Kafka ACLs cannot be managed at the IAM level, but instead must be defined within clusters.

(all information obtained from AWS Certified Machine Learning Engineer Associate: Hands On! course on Udemy)
